Special offers PS-1005

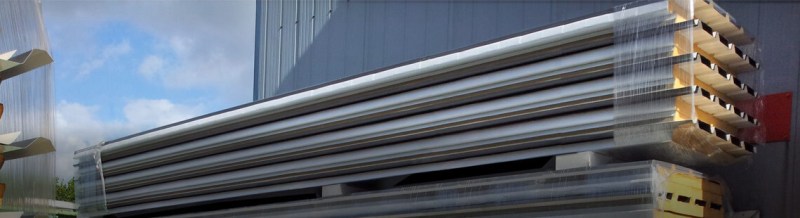

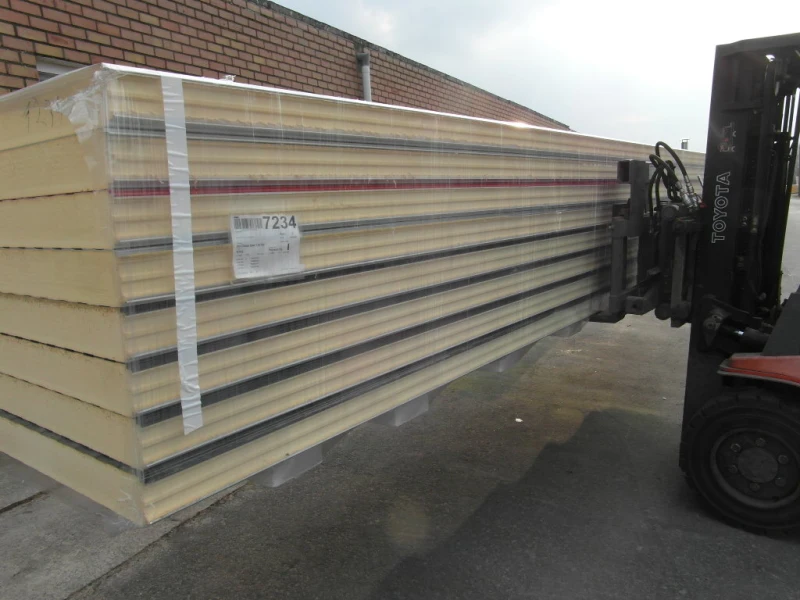

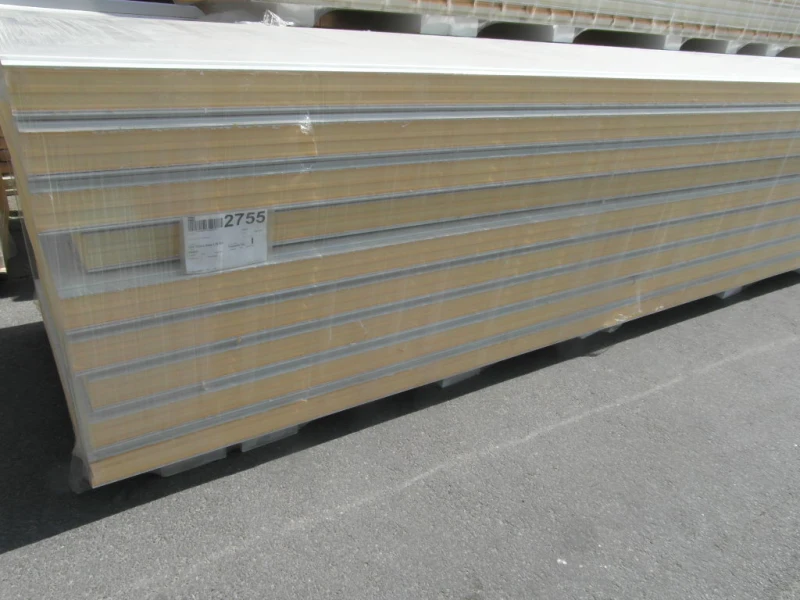

WALL / COLD ROOM / FREEZER panels: 120mm thick, white inner, B-grade, DELIVERY worldwide

Price / m²
ZAR 310,45
  • Available quantity: 10
  • B-grade (2nd grade condition)
  • Length: 6 m - 9,4 m
  • Width: 1,15 m
 Your Enquiry for Special Offer
Wall
Wall
10 pcs.
VE 12

Special offer details

120mm, 6m & 9.4m long, 1.15m wide

Rigid PUR (polyurethane) insulation

Inner colour RAL9002 grey white, outer various colours

Channels / tracks, angles, screws & doors also available

Can also produce new panels to your dimensions & colour (closest match)

Delivery UK wide

Panel Sell ltd.

U-Value

PIR

Core thickness
[mm]
U-Value
[W/m² K]
30 0.71
40 0.54
50 0.44
60 0.37
80 0.28
100 0.22
120 0.19
150 0.15
180 0.12
200 0.11
220 0.1
240 0.09

Rockwool

Core thickness
[mm]
U-Value
[W/m² K]
50 0.69
60 0.59
80 0.45
100 0.37
120 0.31
140 0.27
160 0.24
180 0.21
200 0.19

PIR

Core thickness
[mm]
U-Value
[W/m² K]
30 0.64
40 0.49
60 0.34
80 0.26
100 0.21
120 0.18
150 0.15

Rockwool

Core thickness
[mm]
U-Value
[W/m² K]
50 0.76
60 0.63
80 0.47
100 0.38
120 0.32
150 0.25
180 0.21
200 0.19

PIR

Core thickness
[mm]
U-Value
[W/m² K]
60 0.37
80 0.26
100 0.21
120 0.18
150 0.14
180 0.12
200 0.11
Weight

PIR

Core thickness
[mm]
Weight
[kg]
40 7,9 - 9,6
60 8,7 - 10,8
80 9,5 - 11,6
100 10,3 - 12,4
120 11,1 - 13,2

Rockwool

Core thickness
[mm]
Weight
[kg]
50 14,6
60 15,6
80 17,6
100 19,6
120 21,6
140 23,6
160 25,6
180 27,6
200 29,6

All information without guarantee for completeness and correctness. Information includes variations in sheet thickness, insulation materials and type of fastening. Technical changes reserved.

PIR

Core thickness
[mm]
Weight
[kg]
30 11,5
40 11,9
50 -
60 12,7
80 13,4
100 14,2
120 14,9

Rockwool

Core thickness
[mm]
Weight
[kg]
30 -
40 -
50 13,9
60 14,9
80 16,9
100 18,9
120 20,9

All information without guarantee for completeness and correctness. Information includes variations in sheet thickness, insulation materials and type of fastening. Technical changes reserved.

PIR

Core thickness
[mm]
Weight
[kg]
80 11,4 - 13,1
100 12,2 - 13,9
120 13 - 14,7
150 14,2 - 15,9
180 15,4 - 17,1
200 16,2 - 17,9

All information without guarantee for completeness and correctness. Information includes variations in sheet thickness, insulation materials and type of fastening. Technical changes reserved.
