Tailor-made panels

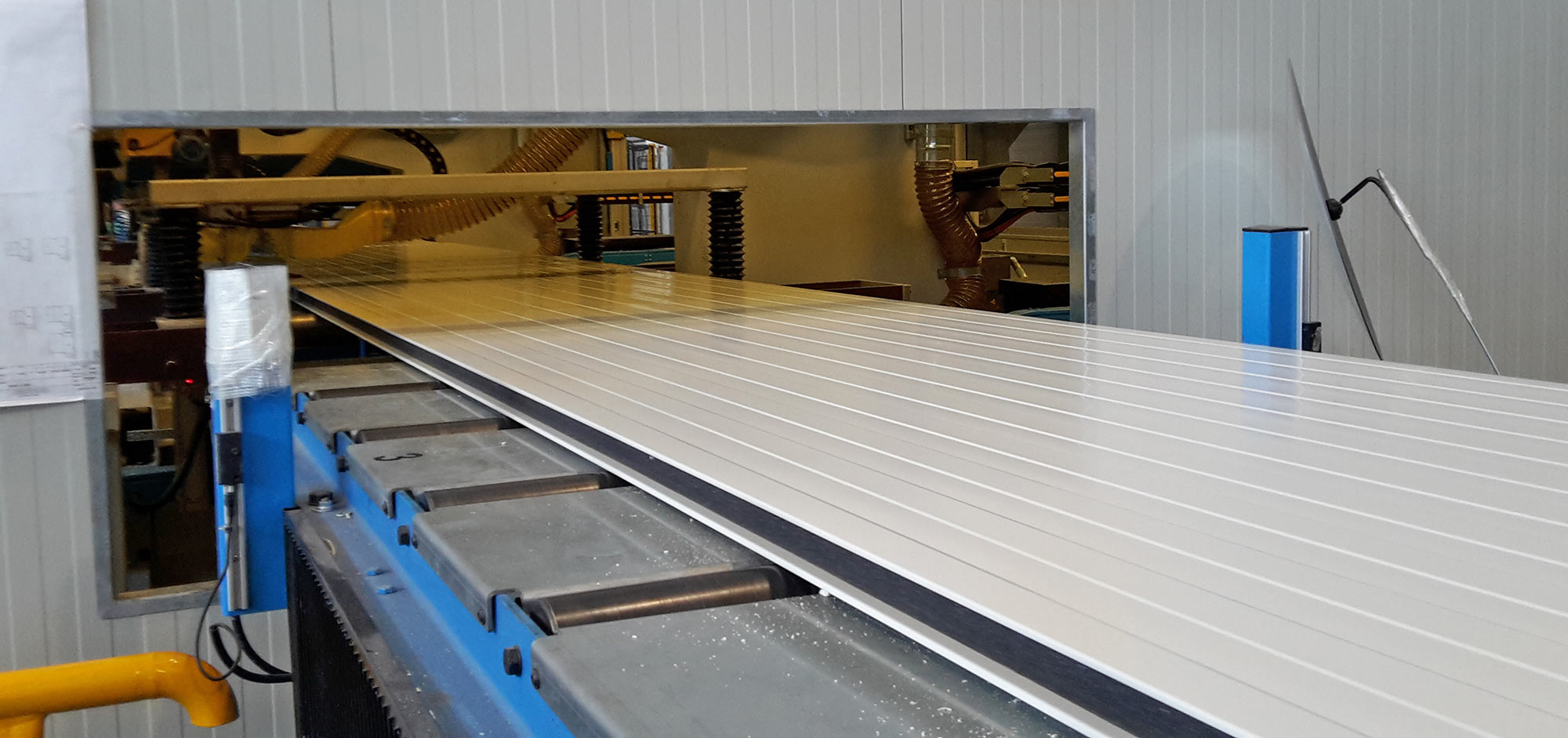

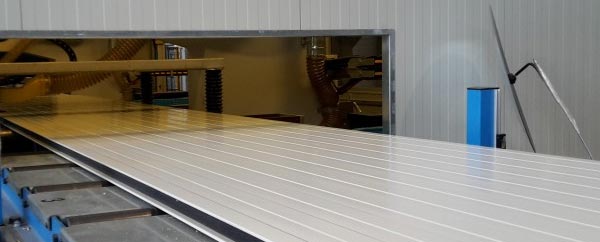

Sandwichpaneele Massproduktion

Insulated panels for roof and wall in all thicknesses, lenghts and colours

Do you need insulated panels for roof or wall and our stock articles or special offers does not suit your needs? If you need more than 250m² we can offer you tailor-made panels. You just have to enter the thickness, length, RAL-colour and the core material you need and we will send you an offer. If you need a smaller amount than 250m², please have a look at our stock articles.

Make your request here

PIR

Core thickness
[mm]
U-Value
[W/m² K]
30 0.71
40 0.55
50 0.44
60 0.37
80 0.28
100 0.22
120 0.18
150 0.15
180 0.12
200 0.11
220 0.1
240 0.09

Rockwool

Core thickness
[mm]
U-Value
[W/m² K]
50 0.69
60 0.59
80 0.45
100 0.37
120 0.31
140 0.27
160 0.24
180 0.21
200 0.19

PIR

Core thickness
[mm]
U-Value
[W/m² K]
30 0.71
40 0.55
50 0.44
60 0.37
80 0.28
100 0.22
120 0.18
150 0.15

Rockwool

Core thickness
[mm]
U-Value
[W/m² K]
50 0.69
60 0.59
80 0.45
100 0.37
120 0.31
140 0.27
160 0.24
180 0.21
200 0.19

PIR

Core thickness
[mm]
U-Value
[W/m² K]
60 0.37
80 0.28
100 0.22
120 0.19
150 0.15
180 0.12
200 0.11
220 0.1
240 0.09

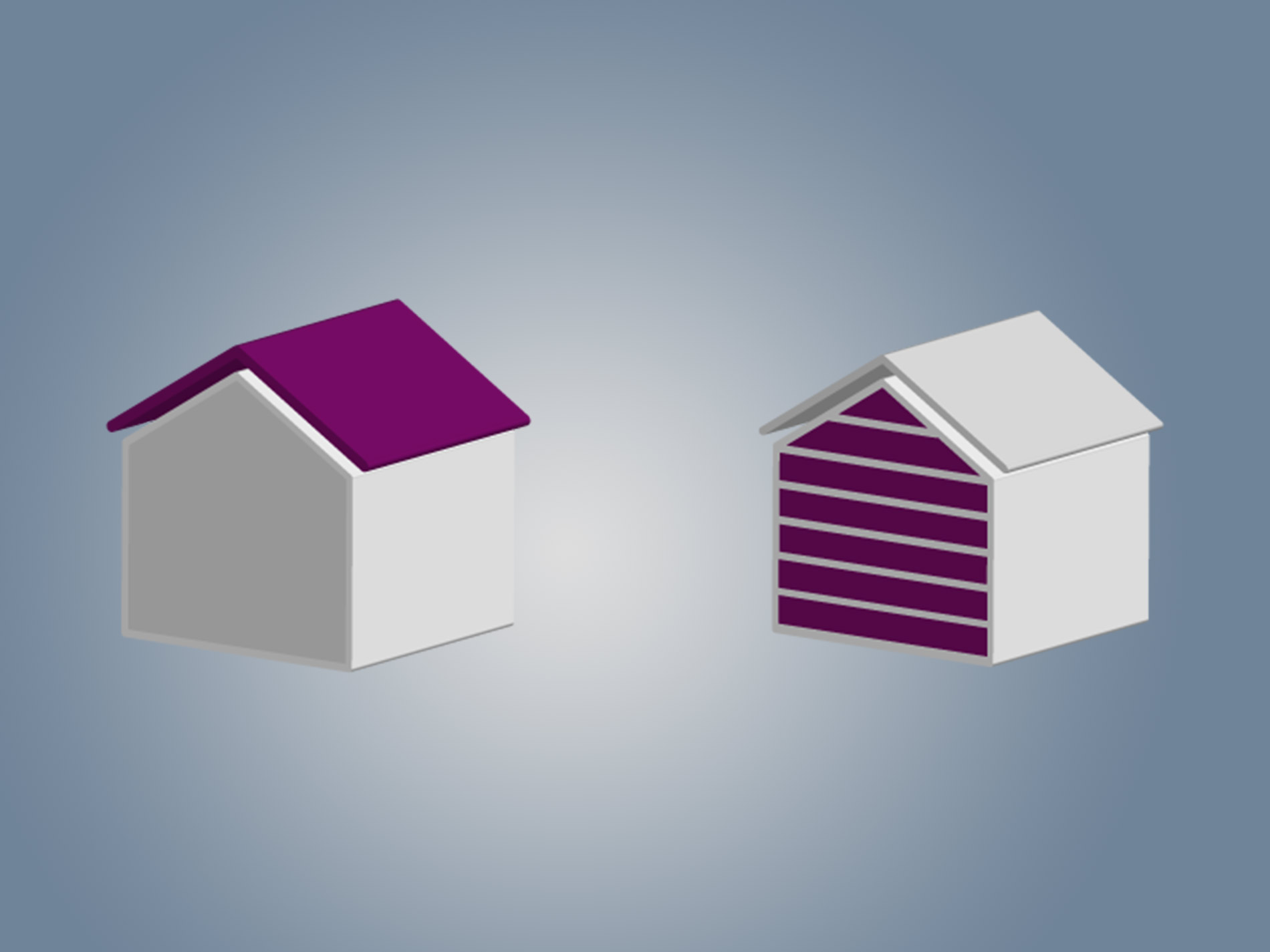

1. What do you want to use our product for?

Wall
Roof
Warehouse
Cold Room
Carport

1.1.2.1. What type of roof does your object have?

Lean-to roof
Gable end
Asymmetrical roof


1.1. How do you want to install the wall panels?

Horizontal
Vertical


1.1. Which direction of water flow do you need?

Alignment lengthwise
Alignment widthwise


2.1.2. What dimensions do you have?

A Width
m
B Panel length
m
C Ridge height
m
D 2. length
m
E 3. length
m
F 4. length
m


2.1.2. What dimensions do you have?

A Eaves height
m
B Panel length
m
C Ridge height
m
D 2. length
m
E 3. length
m
F 4. length
m


2.2.2. What dimensions do you have?

A Eaves length
m
B Panel length
m
C Eaves height
m
D Ridge height
m
α Roof angle (if known)
°


2.2.2. What dimensions do you have?

A Eaves length
m
B Panel length
m


2.2.2. What dimensions do you have?

A Eaves length
m
B Panel length
m
C Panel length
m
D Ridge height
m
E Eaves height
m
α Roof angle (if known)
°


2. What dimensions do you have?

A Width
m
B Panel length
m


2. What dimensions do you have?

A Length
m
B Panel length
m


2. What dimensions do you have?

A Length
m
B Height
m
C Width
m
D Width door
m
E Height door
m


3.1. Which material do you want to use?
- Core insulation -

Core insulation PIR
Core insulation rockwool


3.1 Which material do you want to use?
- Core insulation -

Core insulation PIR


3.2 What profile do you want to use?
- Surface -

Standard Lined
Microrib
Double
Smooth


3.2 What profile do you want to use?
- Surface -

Trapezoidal


3.2 What profile do you want to use?
- Surface -

Standard Lined
Smooth


3.3 Which fixing type do you want to use?
- Which fixing type do you want to use? -

Visible fixing
Secret fixing


3.4.3.3. Which material do you want to use?
- Core thickness & U-value -


30
mm

40
mm

60
mm

80
mm

100
mm

120
mm

140
mm

150
mm

160
mm

180
mm

200
mm

220
mm

240
mm


3.4.3.3. Which material do you want to use?
- Core thickness & U-value -


30
mm

40
mm

60
mm

80
mm

100
mm

120
mm

140
mm

150
mm

160
mm

180
mm

200
mm


3.4.3.3. Which material do you want to use?
- Core thickness & U-value -


60
mm

80
mm

100
mm

120
mm

140
mm

150
mm

160
mm

180
mm

200
mm


3.5.3.6. What exterior colour do you prefer? (Wall)
Indicate your desired colour or choose from the most requested colours for this product:

  RAL 7016
  RAL 9002
  RAL 9006
RAL
On request


3.53.4. What exterior colour do you prefer? (Roof)
Indicate your desired colour or choose from the most requested colours for this product:

  RAL 7016
  RAL 8012
  RAL 9002
RAL
On request


3.4. What exterior colour do you prefer?
Indicate your desired colour or choose from the most requested colours for this product:

  RAL 9002
RAL
On request


3.53.4. What exterior colour do you prefer? (Roof)
Indicate your desired colour or choose from the most requested colours for this product:

  RAL 7016
RAL
On request


4.1. What is your structure's frame made from?

in wood
in steel


4.2. Which profile do you require?

A - U-Profile
B - Exterior Corner
C - Interior Corner
D - Interior ridge flashing
E - Exterior ridge flashing
F - Monopitch ridge flashing
G - Barge board flashing
H - Water deflector flashing
I - Drip edge flashing
J - Apron flashing
K - Sill Flashing
L - Apron flashing lengthwise
Go to last page


4.2. Which profile do you require?

A - U-Profile
B - Exterior Corner
C - Interior Corner
D - Barge board flashing
Go to last page


4.2. Which profile do you require?

A - Barge board flashing
B - Drip edge flashing
Go to last page


5. How can we contact you?

  By submitting your request, you consent to the processing of your specified data for the purpose of request processing: Legal information / privacy policy


If you have any basic questions about the composition or the usage of insulated panels, we recommend reading our text "What you need to know about insulated panels for walls and roofs".

The following table lists all options for a tailor-made production:

  Insulated roof panels Insulated wall panels

Thickness*
(*for roof panels the core-thickness is meant)

30mm - 150mm 40mm - 200mm
Lengths 2.5m - 14m
Width 1.000 m 1.150m
Core material Polyurethane (PUR), polyisocyanurat (PIR), rock wool (non-flammable)
Sheet thickness of external shell 0.4mm-0.6mm
Sheet thickness of internal shell 0.4mm-0.6 mm
RAL-colour List of RAL colours
Type of surface Trapeziodal, ECO (Aluminium foiled-back), tile profile Eurobox, micro, double, smooth
Type of fixing --- secret fixing, open fixing
