100mm & 120mm, 2.5m & 6m lengths, 1m & 1.15m wide
Minimum order: 40ft GP container

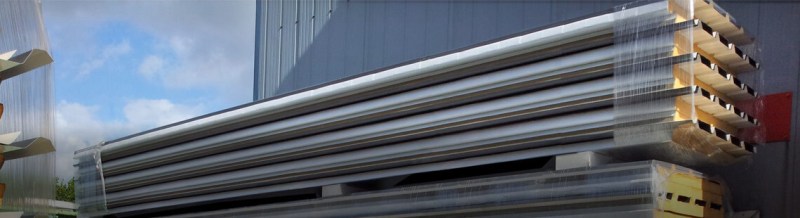

Typ: wall & freezer panels
Quality: B-grade
Foam: PUR B3
Sheet: 0.6/0.4
Colour: Mixed / white RAL 9002
Usage: cladding, partition walls, cold rooms, freezers, desaster relief housing
Prices: ex-yard Belgium
Delivery worldwide
| Quantity | Length | Width | Area (sqm) | Colour (both sides) |
|---|---|---|---|---|
| 10 | 2,5 m | 1,15 m | 28,75 m² | Mixed / white |
| 10 | 6 m | 1,15 m | 69 m² | Mixed / white |
Panel Sell ltd.
| Core thickness [mm] | U-Value [W/m² K] |
|---|---|
| 30 | 0.71 |
| 40 | 0.54 |
| 50 | 0.44 |
| 60 | 0.37 |
| 80 | 0.28 |
| 100 | 0.22 |
| 120 | 0.19 |
| 150 | 0.15 |
| 180 | 0.12 |
| 200 | 0.11 |
| 220 | 0.1 |
| 240 | 0.09 |
| Core thickness [mm] | U-Value [W/m² K] |
|---|---|
| 50 | 0.69 |
| 60 | 0.59 |
| 80 | 0.45 |
| 100 | 0.37 |
| 120 | 0.31 |
| 140 | 0.27 |
| 160 | 0.24 |
| 180 | 0.21 |
| 200 | 0.19 |
| Core thickness [mm] | U-Value [W/m² K] |
|---|---|
| 30 | 0.64 |
| 40 | 0.49 |
| 60 | 0.34 |
| 80 | 0.26 |
| 100 | 0.21 |
| 120 | 0.18 |
| 150 | 0.15 |
| Core thickness [mm] | U-Value [W/m² K] |
|---|---|
| 50 | 0.76 |
| 60 | 0.63 |
| 80 | 0.47 |
| 100 | 0.38 |
| 120 | 0.32 |
| 150 | 0.25 |
| 180 | 0.21 |
| 200 | 0.19 |
| Core thickness [mm] | U-Value [W/m² K] |
|---|---|
| 60 | 0.37 |
| 80 | 0.26 |
| 100 | 0.21 |
| 120 | 0.18 |
| 150 | 0.14 |
| 180 | 0.12 |
| 200 | 0.11 |
| Core thickness [mm] | Weight [kg] |
|---|---|
| 40 | 7,9 - 9,6 |
| 60 | 8,7 - 10,8 |
| 80 | 9,5 - 11,6 |
| 100 | 10,3 - 12,4 |
| 120 | 11,1 - 13,2 |
| Core thickness [mm] | Weight [kg] |
|---|---|
| 50 | 14,6 |
| 60 | 15,6 |
| 80 | 17,6 |
| 100 | 19,6 |
| 120 | 21,6 |
| 140 | 23,6 |
| 160 | 25,6 |
| 180 | 27,6 |
| 200 | 29,6 |
All information without guarantee for completeness and correctness. Information includes variations in sheet thickness, insulation materials and type of fastening. Technical changes reserved.
| Core thickness [mm] | Weight [kg] |
|---|---|
| 30 | 11,5 |
| 40 | 11,9 |
| 50 | - |
| 60 | 12,7 |
| 80 | 13,4 |
| 100 | 14,2 |
| 120 | 14,9 |
| Core thickness [mm] | Weight [kg] |
|---|---|
| 30 | - |
| 40 | - |
| 50 | 13,9 |
| 60 | 14,9 |
| 80 | 16,9 |
| 100 | 18,9 |
| 120 | 20,9 |
All information without guarantee for completeness and correctness. Information includes variations in sheet thickness, insulation materials and type of fastening. Technical changes reserved.
| Core thickness [mm] | Weight [kg] |
|---|---|
| 80 | 11,4 - 13,1 |
| 100 | 12,2 - 13,9 |
| 120 | 13 - 14,7 |
| 150 | 14,2 - 15,9 |
| 180 | 15,4 - 17,1 |
| 200 | 16,2 - 17,9 |
All information without guarantee for completeness and correctness. Information includes variations in sheet thickness, insulation materials and type of fastening. Technical changes reserved.
